Hi all,
I wonder if anyone can point me in the direction of some code to create a ring mesh? I’m trying to create a Saturn-style ring. I’ve had a good google, but to no avail. I’m surprised it’s not included in JME, since it has a torus which is effectively a 2D ring. Thanks in advance.
Some shapes JME left in for historic reasons but in general takes the position that if you want to model shapes then you should do it in a 3D modeling package.
So your options are:
-make the shape in blender
-learn to make a custom mesh (not particularly difficult)
-use a big quad with a texture on it
-convince/coerce/hire someone to write a custom mesh for you.
Thanks, I’ll look into those options (although if anyone reading this already has some Ring code, it would be much appreciated
).
Not knowing specifically what you’re looking for I would say my circle shader might be able to help you out here:
He want a planet ring not a jewellery ring
Sorry, I misunderstood about it.
I once wrote this code. Specify the number of sides you want the mesh to have (e.g. 3 for a triangle), the outer radius of the ring as well as the thickness and you get a wonderful 2d mesh:
/**
* {@link Mesh} representing a regular polygon. The polygon is 2-dimensional and not completely filled. Instead, only a
* frame around the border is created.
*
*/
public class PolygonFrame extends Mesh {
/**
* Number of sides on the polygon.
*/
private int sides;
/**
* Thickness of the border.
*/
private float thickness;
/**
* Outer radius of the polygon.
*/
private float outerRadius;
/**
* Constructor.
*
* @param sides Number of sides on the polygon
* @param outerRadius Outer radius of the polygon
* @param thickness Thickness of the border
*/
public PolygonFrame(int sides, float outerRadius, float thickness) {
this.sides = sides;
this.thickness = thickness;
this.outerRadius = outerRadius;
buildMesh();
}
/**
* Builds the mesh structure.
*/
private void buildMesh() {
// Quaternion used to rotate the corner points in order to get the next one
Quaternion rotation = new Quaternion().fromAngleAxis(FastMath.TWO_PI / (float) sides, Vector3f.UNIT_Z);
// The angle on the inside of the polygon
float innerAngle = (float) (sides - 2) * FastMath.PI / (float) sides;
// The distance between an inner and an outer corner along the radius
float cornerDistance = thickness / FastMath.sin(innerAngle / 2f);
// The inner radius
float innerRadius = outerRadius - cornerDistance;
// vertices (CCW, first outer then inner)
Vector3f[] vertices = new Vector3f[sides * 2];
Vector2f[] texCoord = new Vector2f[sides * 2];
int[] indices = new int[sides * 2 * 3];
Vector3f inner = Vector3f.UNIT_Y.mult(innerRadius);
Vector3f outer = Vector3f.UNIT_Y.mult(outerRadius);
int index = 0;
for (int i = 0; i < sides; i++) {
// Set vertices
vertices[i * 2] = outer;
vertices[i * 2 + 1] = inner;
// Set texture coordinates
texCoord[i * 2] = new Vector2f(outer.x, outer.y);
texCoord[i * 2 + 1] = new Vector2f(inner.x, inner.y);
// Set indices
int thisOuter = i * 2;
int thisInner = i * 2 + 1;
int nextOuter = i * 2 + 2;
int nextInner = i * 2 + 3;
if (i == sides - 1) {
nextOuter = 0;
nextInner = 1;
}
indices[index++] = thisOuter;
indices[index++] = nextInner;
indices[index++] = thisInner;
indices[index++] = thisOuter;
indices[index++] = nextOuter;
indices[index++] = nextInner;
// Calculate next location
inner = rotation.mult(inner);
outer = rotation.mult(outer);
}
// Create actual mesh
setBuffer(Type.Position, 3, BufferUtils.createFloatBuffer(vertices));
setBuffer(Type.TexCoord, 2, BufferUtils.createFloatBuffer(texCoord));
setBuffer(Type.Index, 3, BufferUtils.createIntBuffer(indices));
updateBound();
}
public int getSides() {
return sides;
}
public void setSides(int sides) {
this.sides = sides;
buildMesh();
}
public float getThickness() {
return thickness;
}
public void setThickness(float thickness) {
this.thickness = thickness;
buildMesh();
}
public float getOuterRadius() {
return outerRadius;
}
public void setOuterRadius(float outerRadius) {
this.outerRadius = outerRadius;
buildMesh();
}

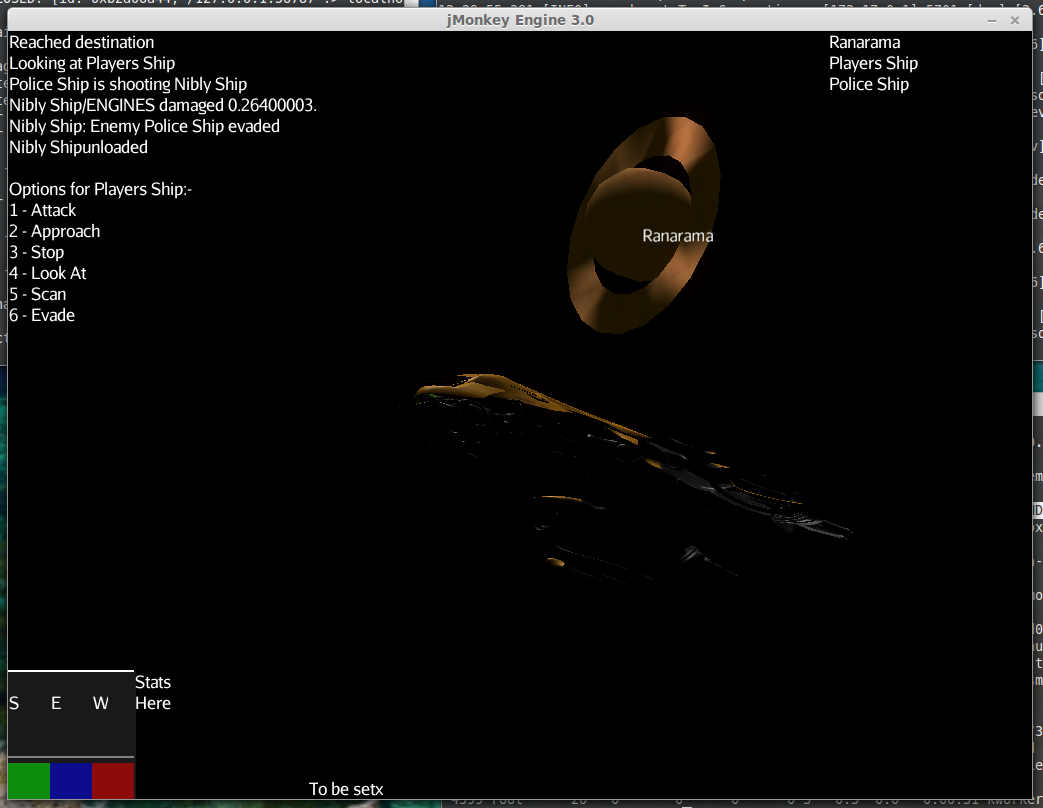

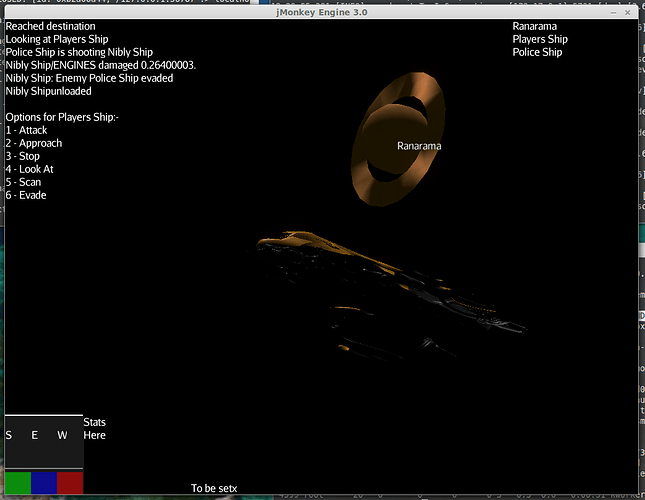

}Cervantez, thanks a lot, that’s just what I was looking for! Here it is in action:
(Please ignore all the surrounding guff, it’s a game in development and a long way from completion). Thanks again!
Looks neat! I can’t quite tell, but do texcoords work by repeating a texture around on each quad? That’d be even more neat.
This was the first and only time I ever created a Mesh in my code, but this
texCoord[i * 2] = new Vector2f(outer.x, outer.y);
texCoord[i * 2 + 1] = new Vector2f(inner.x, inner.y);
should set the texCoords for each vertex to the actual position of the vertex, which - as far as I understand it - should allow textures to work with the mesh (since it is all flat).
But I only used it for single colored rings in my project, so I haven’t tested it.
